How to Use Smart Motion Detection (SMD) for Human Detection (IP5M-1190W)

Smart Motion Detection (SMD) uses an advanced algorithm to activate Human Detection only. This will send alarms only when a person is detected. For more information on how to set up smart motion detection on your system, please refer to the information provided below.

Step 1: Log in to the web user interface (web UI) for your camera. For more information on how to access the web UI for your camera click here.

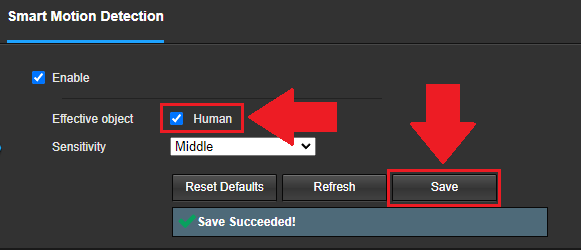

Step 2: Click on Setup>>Event>>Smart Motion Detection and click Enable


Step 3: Use the effective object filter (Human) to allow the device to detect only humans. Click Save


Note: If you would like a snapshot of the event emailed to you once it has been detected by the camera, return to the video detection menu and click the Send Email checkbox. Please make sure email setup is established in the camera before enabling the send email option. For more information on how to set up email notifications, click here.
