Amcrest thermal cameras use a variety of color palettes to display thermal images. The default color palette is Rainbow, which displays the hottest temperatures in red and the coldest temperatures in blue. However, there are other color palettes available that may be better suited for your application. The white hot color palette is one such option. The white hot color palette displays all temperatures in shades of white, with the hottest temperatures being the brightest. This can make it easier to identify hot spots.
To change the color palette of an Amcrest thermal camera to white hot, please refer to the information provided below.
Step 1: Log into the web user interface (web UI) for your camera. For more information on how to access the web UI for your camera click here.
Step 2: Click on Setup>>Camera>>Configuration and select channel 2 from the Channel dropdown menu. Channel 2 is the thermal channel on the camera.

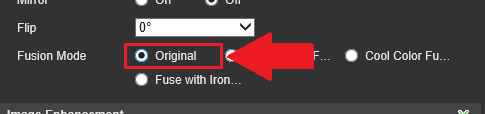

Step 3: Make sure the Fusion Mode option is set to Original.

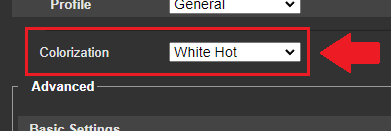

Step 4: Ensure the White Hot option is selected in the Colorization menu.

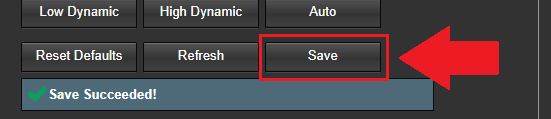

Step 5: Click Save to save the color palette settings.
