The hot trace feature is used to track and spot areas of the interface with the highest and lowest temperatures. This is set to automatically be enabled, however, can be customized manually. For more information on this feature please refer to the information provided below.
Step 1: Log into the web user interface (web UI) for your camera. For more information on how to access the web UI for your camera click here

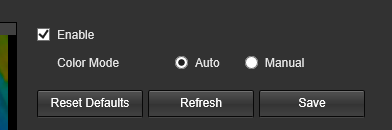

Step 2: The thermal information is colored automatically or manually in the interface.

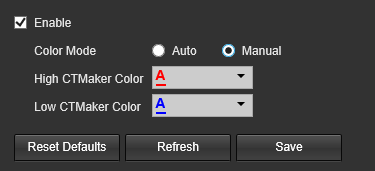

Step 3: To color code it manually, click the Manual button located in the Color Mode field.
Use the high CTmaker color or low CTmaker color options to set a color palette for the high and low temperatures detected in the thermal channel.
