This guide will cover how to adjust/configure the camera settings to troubleshoot any license plate recognition, no trigger of event, or low recognition rate. Make sure the license plate is in range of the camera for identification, adjust the camera and make sure it is in an appropriate position. For more information on how to properly set up and install your camera, click here.
Open a web browser and log in to the web user interface (web UI) for your camera. For more information on how to access the web UI for your camera click here.
If the camera is having issues with license plate recognition, please refer to the recommendations provided below.
The license plate is not clear or out of focus.

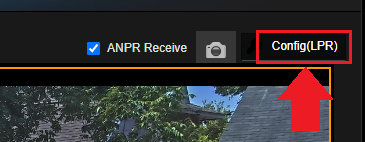

If the license plate image is not clear it is recommended to adjust the focal length based on the detection area of the camera. To adjust the focal length, use the zoom and focus options provided in the Config(LPR) menu.

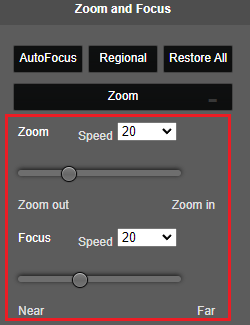

Use the zoom and focus sliders to manually adjust the focal length.
Note: To adjust the focus automatically, click the AutoFocus option and allow the camera to automatically adjust the focal length of the camera.
The license plate is overexposed.
If the license plate image is overexposed, this may be caused by too much light being illuminated by the camera. In this case, it is recommended to adjust the brightness of the white light LEDs. To adjust the brightness of these LEDs, click on Config(LPR) and select Illumination.

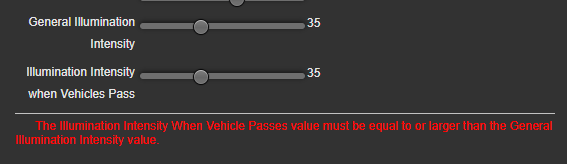

Use the General Illumination and Illumination Intensity when Vehicle Pass options as needed. Please note, the illumination intensity when vehicle passes value must be equal to or larger than the General Illumination Intensity value.
Click Save to apply these settings to your camera. Adjust these values according to the detection area.
