By default, the interface opens to the Live tab. The live view tab allows the user to see the live feed of the camera as well as provides an area to view real time metadata captured by the camera and adjust configuration settings.
Note: LPR configurations and settings can only be set in the web user interface using a web browser. For more information on how to access the web UI for your device, click here.
Configuring LPR Settings.

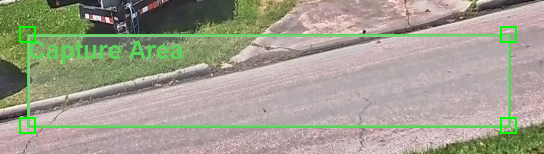

Step 1: Click the Config(LPR) icon. You will notice a capture area box, license plate data will be captured in this area of the interface. The capture area is set by default to the recommended area, however, can be adjusted by selecting the area with your mouse and adjusting the four corners of the box.
Step 2: Use the zoom and focus options if necessary according to the area that is being monitored.
Step 3: If there are areas of the capture area that need to be excluded, click the Add option located in the Shield Area field. Use your mouse to set a shield area in the capture area overlay.
Step 4: Click Save to apply the capture settings to the device.
