A report of all people counting data can be viewed in the web user interface. A people counting report will display the number of people who have entered or exited the area in a specific date. It can display the data in a bar or line graph, depending on your preference. This report can be exported to your computer in a .png or .csv (excel) file if needed. Please make sure a microSD card has been inserted in the camera to view a report. For more information on how to view people counting reports please refer to the information provided below.
Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.
Step 2: Click on AI, then in the Report select People Counting.
Step 3: The camera can display people counting data of up to 12 months. Select either a People Counting or Area People Counting report from the Rule dropdown menu. If you would like to see reporting for the day, click Today, if you would like to see the weekly amount click This Week, etc. To set a custom start and end time, select the calendar option and enter the start and end time of the reporting. Click Search to view the report.
Step 4: A reporting of all people counting data will be displayed. To export this data to your computer, select the file type (.png or .csv) and click Export.

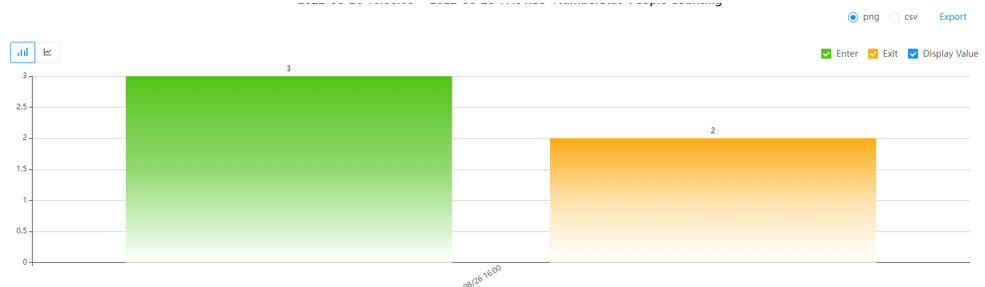

People Counting Report

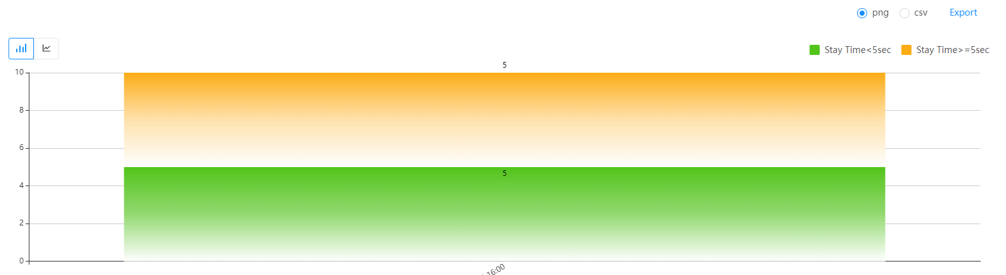

Area People Counting Report
