Tripwire allows the camera to trigger an event if an object, such as a human or vehicle, crosses a set tripwire line. After adding the rule, the interface will show the rule as enabled, use your mouse to draw a detection line on the interface. For more information on how to setup the rule please refer to the information provided below.
Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.
Step 2: Access the main menu and click on AI, select IVS from the smart plan menu and click Next.
Step 3: Click Add Rule and select Tripwire from the dropdown menu. Use your mouse to draw a detection line on the interface.

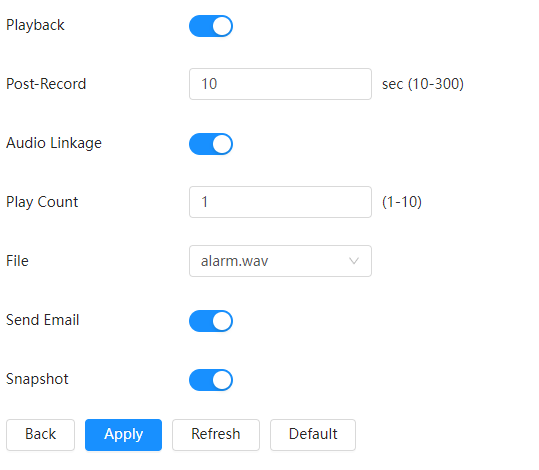

Step 4: Click Playback to retain events to a microSD card. This will allow you to view IVS events in the playback menu. Select any additional options, such as a audio linkage, which will allow the camera to produce an audible siren, or email to send a notification of the event to an entered email address. For more information on how to setup email alerts, click here. Click Apply when finished.
