How To Setup FTP Using a EI NVR

Amcrest NVRs support both FTP (File Transfer Protocol) or SFTP which are both a standard network protocol used for the transfer of computer files between a client and server on a computer network. FTP can be set up for each channel directly from your NVR and will store events to a selected user interface or FTP client. For more information on how to set up FTP on your NVR please refer to the information provided below.

Step 1: Open the web user interface (Web UI) of your camera using a web browser. For more information on how to access the web UI, click here.

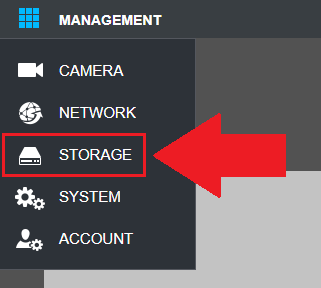

Step 2: Navigate to Management and click on Storage.

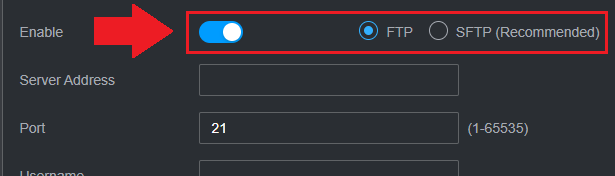

Step 3: In the Storage menu, click on the FTP option. Click OK and make sure to click on the "Enable" checkbox to enable FTP.

Screenshot 2024-02-08 152259.png

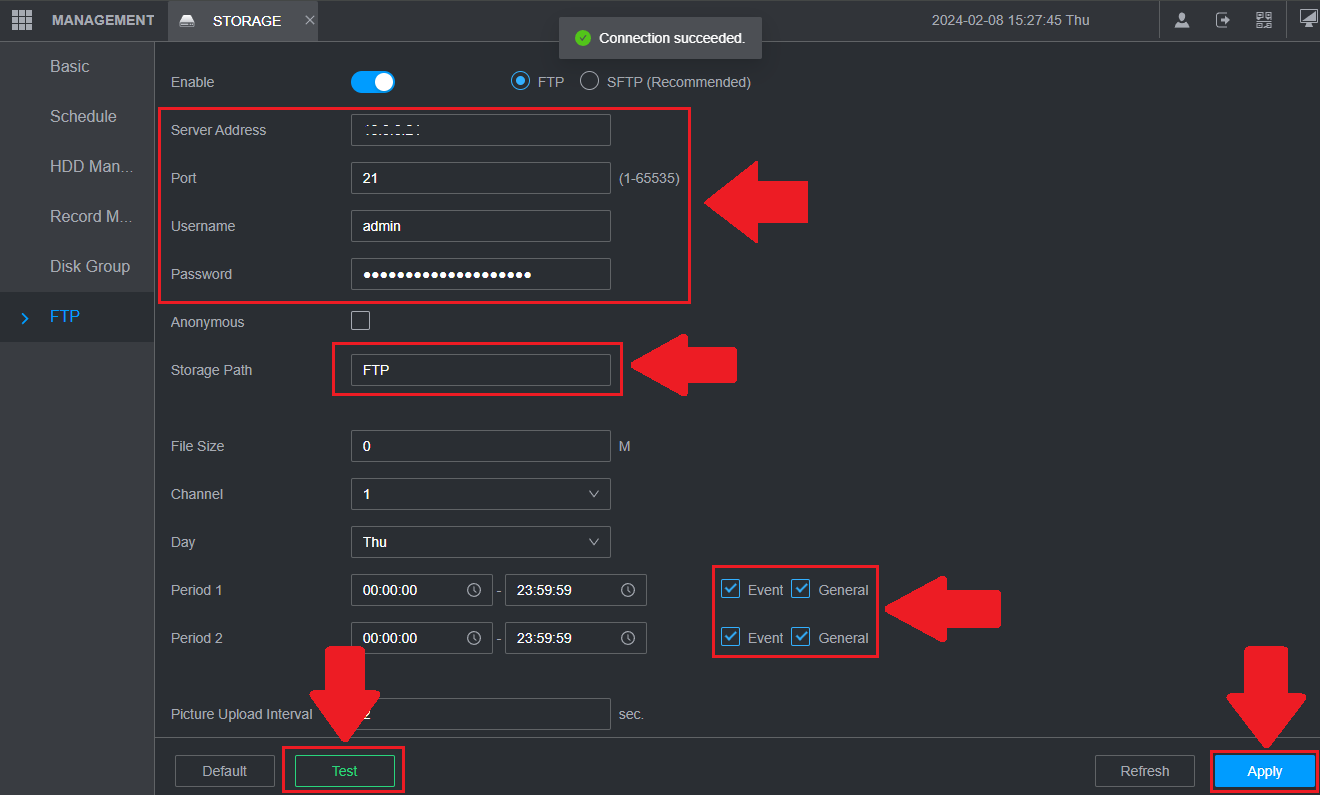

Step 4: Type in the Server IP for your FTP server into the Server IP field. Leave the Port as 21 and enter the Username and Password for your FTP. In the Remote Directory field, type in the folder name you would like the files to be retained. Make sure to enable the Trigger (Motion Detection) checkbox if you want motion events retained and "Regular" if you want general (24/7) recordings retained. Both can be enabled at the same time for 24/7 coverage.  Click Test to test the connection and Save when complete.

Screenshot 2024-02-08 152504.png

Additionally, you can set schedules as well for your recordings from the FTP menu. Click on the Weekday tab to choose which day of the week you would like your schedule to apply. If you would like to have your schedule apply to all days of the week select "All" from the dropdown menu.

By default, the times will be set to 24hrs however this can be modified to your preference in the Time Period field.

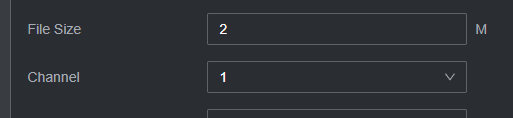

Step 5: It is recommended to adjust the File Length you would like for your videos. It will be set to 0 minutes by default. If you want to retain a certain length of the video per file please adjust to a number higher than 1. Click Save when complete.

Step 6:  Once the connection has been made and verified, navigate to your FTP server and access the remote directory folder you have created and verify the files are saving and can be viewed on your FTP server properly.
