Smart Motion Detection (SMD) uses an advanced algorithm to differentiate between human and motor vehicle shapes within a scene and send alarms only when a person or vehicle is detected. This option works with motion detection within the system. Please note, this option cannot be activated if face detection or other AI rules are disabled in the system. For more information on how to set up smart motion detection on your system, please refer to the information provided below.

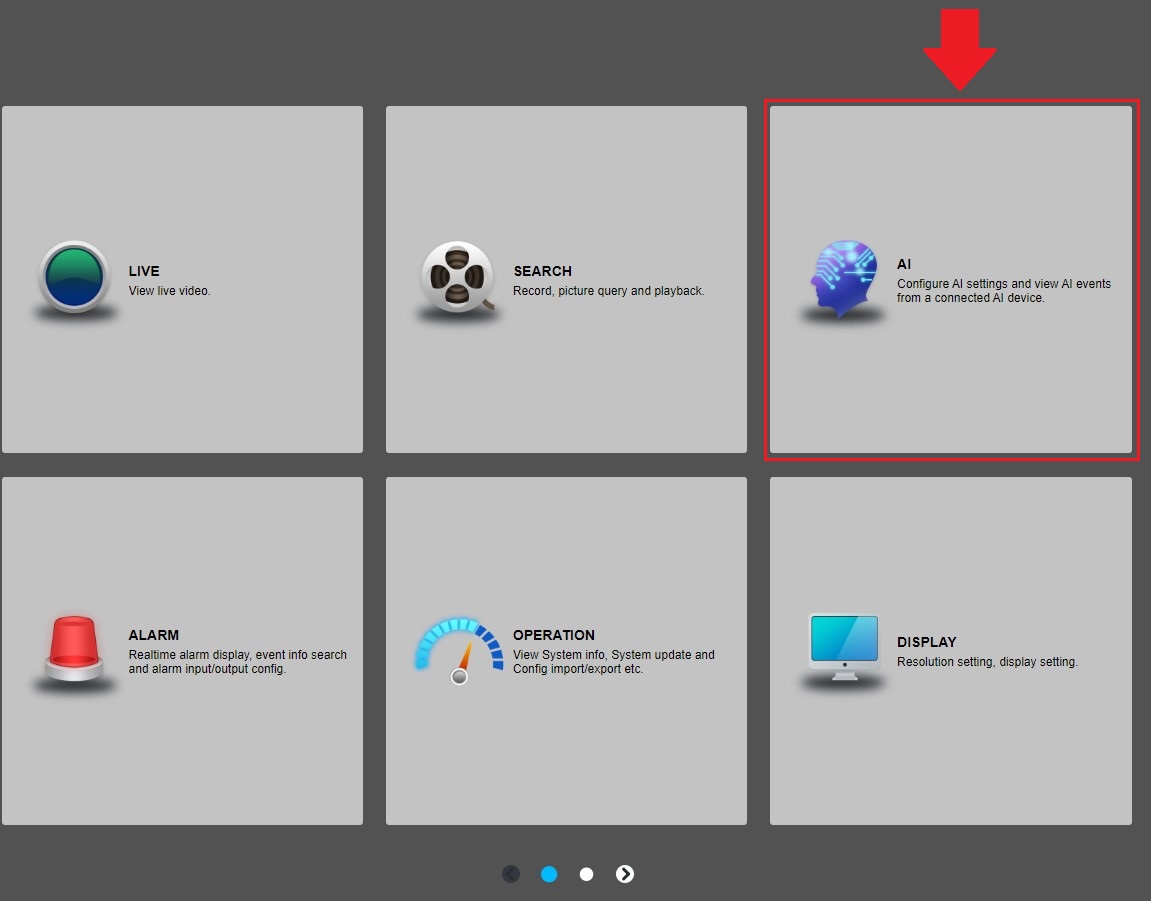

Step 1: Log into the NVR directly or using the NVR's web user interface (web UI) using a web browser and select AI from the main menu. For more information on how to access the web UI for your device, click here.

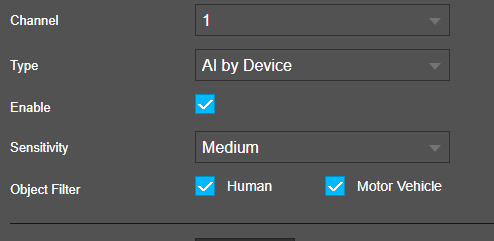

Step 2: Select SMD in the Parameters menu. Use the object filter option to set the camera to detect human or vehicle events. Both filters can be used simultaneously if needed. Click Enable.
Step 3: Enable any additional notification features and click Apply.
How To View Smart Motion Detection Events
In the AI menu, click on the smart search option and select SMD. Select which channel you would like to view, in the All dropdown menu, select human or vehicle events if needed. Select an increment of reporting in the Period dropdown menu. If you would like a custom reporting of the events, enter a start and end time into the interface and click Search.
Click the Play option to view the event.
