Video metadata is used to detect and retain specified object types such as people, non-motor vehicles, and motor vehicles. Video metadata is typically used in conjunction with the video metadata option in the live view menu and other various metadata options such as structured statistic overlays and video metadata reports.
Video metadata can be set up using either a global or manual preset, however, it is highly recommended to enable a manual preset and smart plan.
Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.

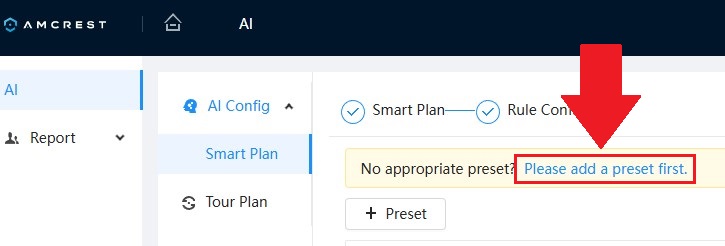

Step 2: Access the main menu and click on AI. Click "Please add a preset first".
Note: If a preset is already established, click +Preset to add an additional preset.

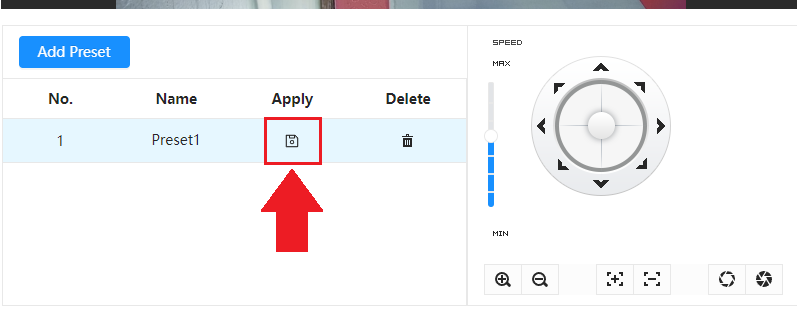

Step 3: Click Add Preset and use the PTZ directional arrows to set a PTZ preset if needed. Click the Apply icon to save the preset then click OK.

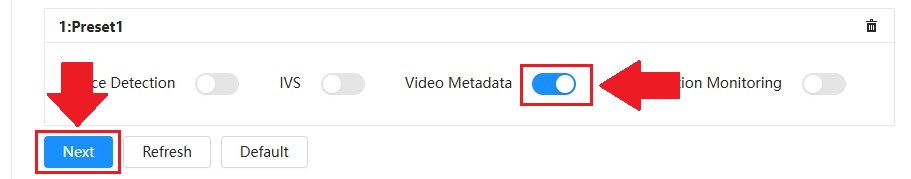

Step 4: Click + Preset and add the preset into the interface. Select the Video Metadata option and click Next.

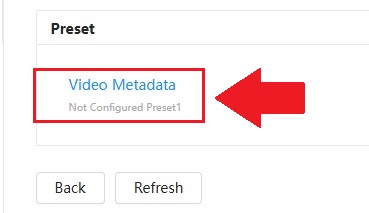

Step 5: Select Video Metadata.

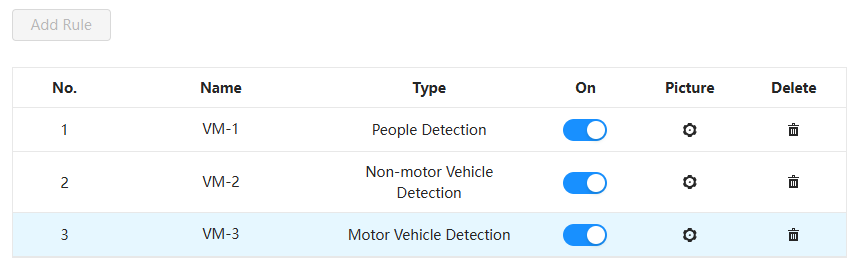

Step 6: Click Add Rule and add any applicable metadata options.

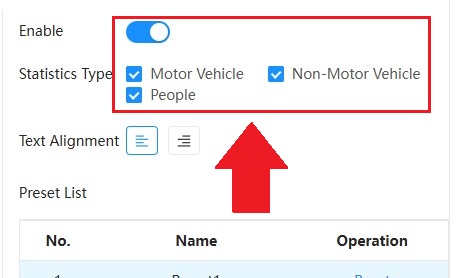

Step 7: Select and modify each type and use your mouse to modify the provided detection area if needed. Click OSD Info to access the target statistics overlay menu. This overlay will allow the camera to count and display each event type detected by the camera. Click Enable, select the statistic types, and click Apply.
Step 8: Navigate back to the Video Metadata menu. The global config tab can be used to set face enhancements, face filters or other details if needed. Click Apply.
Video Metadata Reports

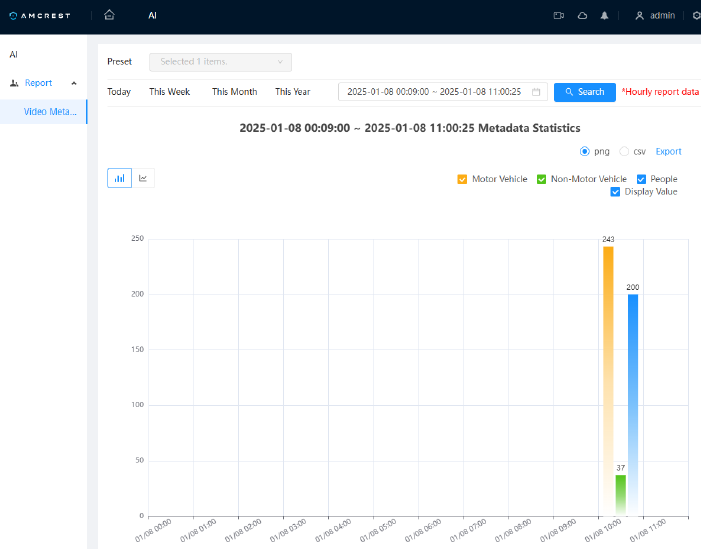

The Report menu allows the user to view and export a video metadata reporting of all people, non-motor vehicle, and vehicle detected by the camera. To view a report, select a date & time range and click Search. To view a daily report, click Today, to view a weekly report click This Week, etc. a report will be generated.
The report can be exported as an image (.png) or a excel sheet (csv). Click the Export button to download the report to your computer.
