How To Setup an Intrusion Rule (IP4M-SN2110EW-AI)

Intrusion allows the camera to trigger an event if an object, such as a human or vehicle, appears or crosses a set intrusion area set by the user. For more information on how to set up an intrusion rule, please refer to the information provided below.

Setting Up an Intrusion Rule

Step 1: Log into the web user interface (web UI) for your camera. For more information on how to access the web UI for your camera click here

Step 2: In the web UI, click on Setup>>Event>>Smart Plan. Click on the IVS icon and click Save.

Note: If a Smart Plan is not enabled properly on your camera IVS features will not work. Please make sure to enable the Smart Plan feature before continuing.

Step 3: Click on the IVS option in the Event menu then click on the ( + ) icon to add the rule. Select Intrusion from the Rule Type menu. Then click on Draw Rule to begin drawing the detection area on the interface. Use your mouse to draw an area. Right-click on the interface when done to set the line.

This rule requires you to draw at least a four-point area on the interface to function. To draw an area, click the mouse on the interface and move it down or up to create a line. Once the line is created, move the mouse left or right to create another line and repeat the process. Right-click on the interface to set the area on the screen then left-click on the interface when done to set the area.

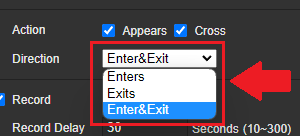

Step 4: In the Direction menu, choose how the rule will be triggered if the object enters only, exits only, or enters & exits a set region.

Note: If you would like an snapshot of the event to be emailed, click Send Email. If a PTZ preset will be activated once the rule is triggered, click PTZ, then select Preset from the dropdown menu.

Step 5: Ensure the Record option is enabled. If you would like the siren or warning light to be activated once the rule is triggered, select Siren Activation and Warning Light. Click Save to save and apply the settings.
