How To Setup Parking Detection (IP4M-T1044EW-AI)

The Parking Detection rule allows the camera to trigger an event if an object, such as a motor vehicle is parked in a set area for a specified amount of time. For more information on how to setup a parking detection rule, please refer to the information provided below.

Setting Up A Parking Detection Rule

Step 1: Log into the web user interface (web UI) for your camera. For more information on how to access the web UI for your camera click here

Step 2: In the web UI, click on Setup>>Event>>Smart Plan. Click on the IVS icon and click Save.

Note: If a Smart Plan is not enabled properly on your camera IVS features will not work. Please make sure to enable the Smart Plan feature before continuing.

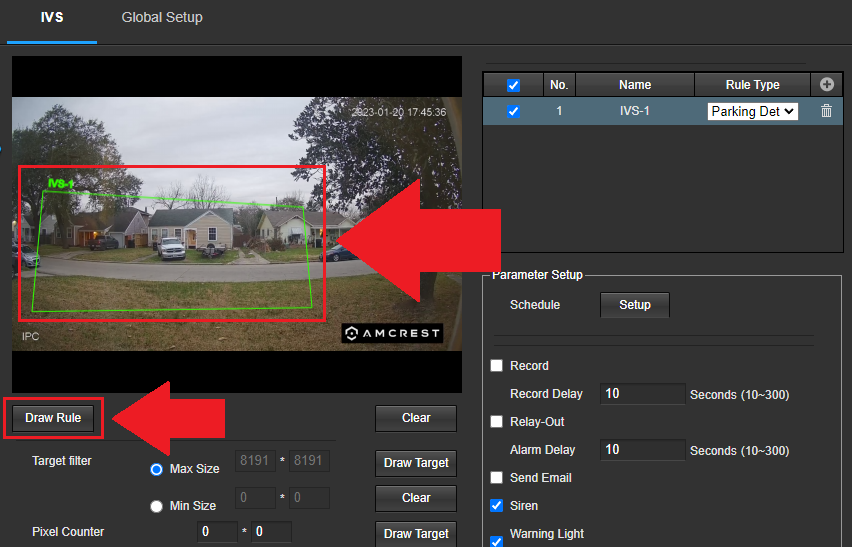

Step 3: Click on the IVS option in the Event menu then click on the ( + ) icon to add the rule. Select Parking Detection from the Rule Type menu. Then click on Draw Rule to begin drawing the detection area on the interface. Use your mouse to draw an area. Right-click on the interface when done to set the area.

This rule requires you to draw at least a four-point area on the interface to function. To draw an area, click the mouse on the interface and move it down or up to create a line. Once the line is created, move the mouse left or right to create another line and repeat the process. Right-click on the interface to set the area on the screen then left-click on the interface when done to set the area.

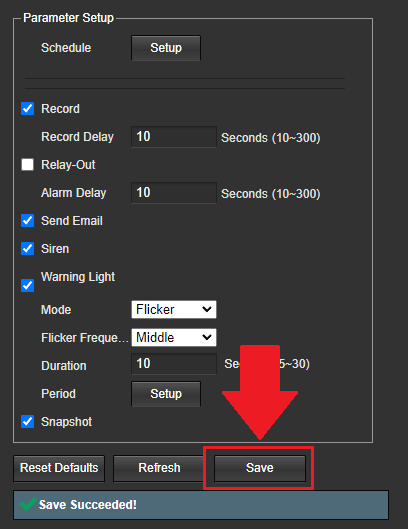

Step 4: Enable the Record option as well as any other options you would like to set for this option and click Save to save and apply the settings.
