Wiring Diagrams for Amcrest Doorbells (AD410)

Find video doorbell wiring instructions that match your existing doorbell wiring.

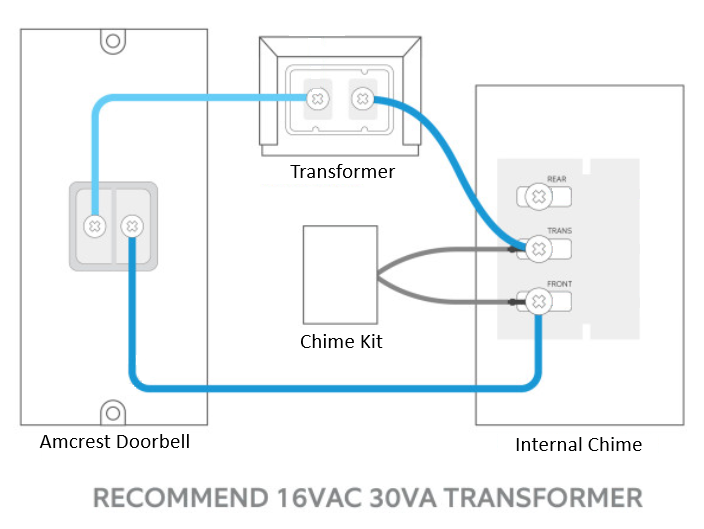

One Amcrest Doorbell With 1 Internal Chime

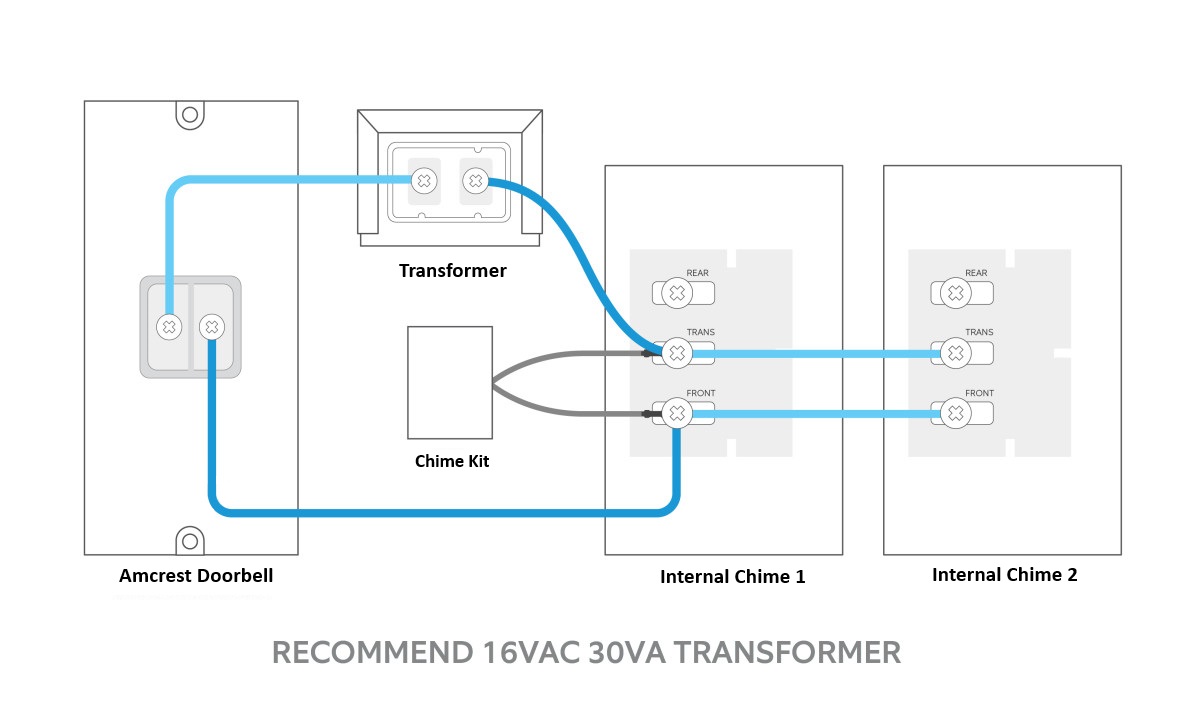

One Amcrest Doorbell With 2 Internal Chimes.

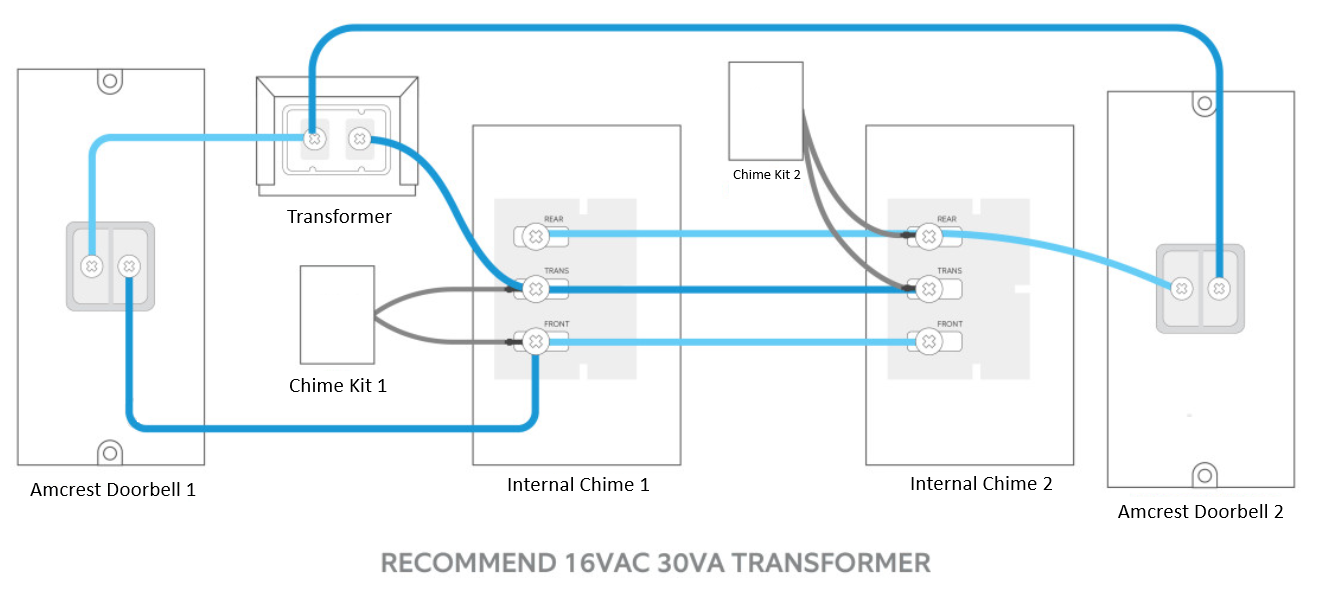

Two Amcrest Doorbells With 1 Internal Chime.

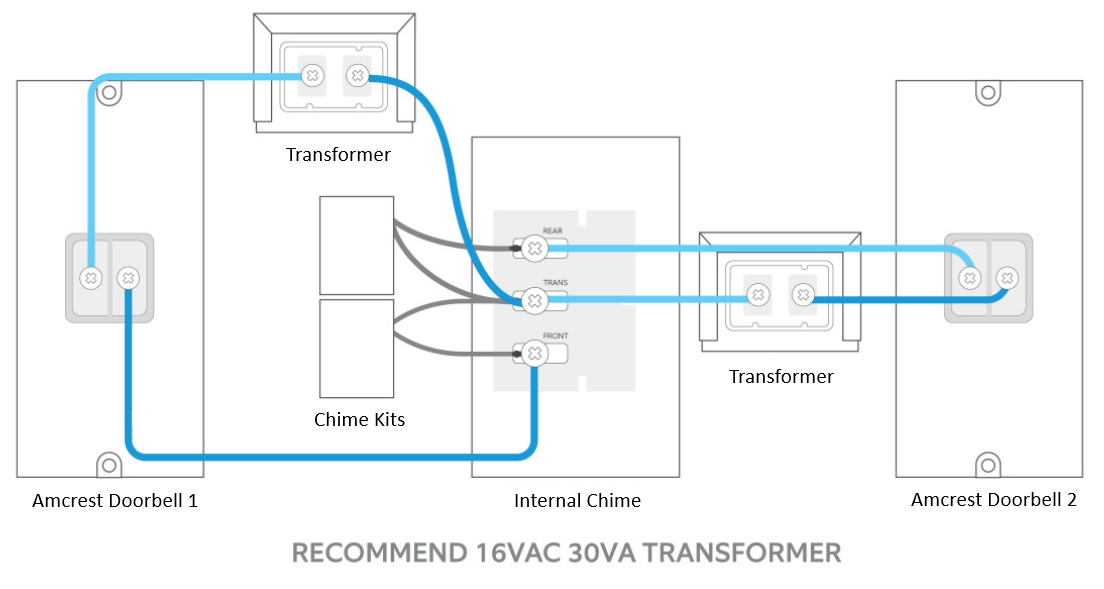

Two Amcrest Doorbells To 2 Internal Doorbell Chimes
