How To Setup A Missing Object Rule On An Amcrest Camera (IP4M-1068EW-AI)

The missing object rule allows the user to set a region around an object and if the object is moved or missing from the detection area an alarm will be triggered. . For more information on how to setup a crowd gathering rule, please refer to the information provided below.

Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.

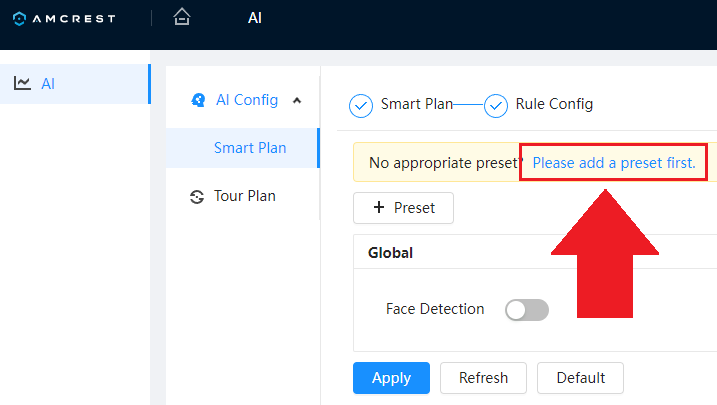

.Step 2: Access the AI menu and click Please add a preset first

Screenshot 2023-10-11 085943.png

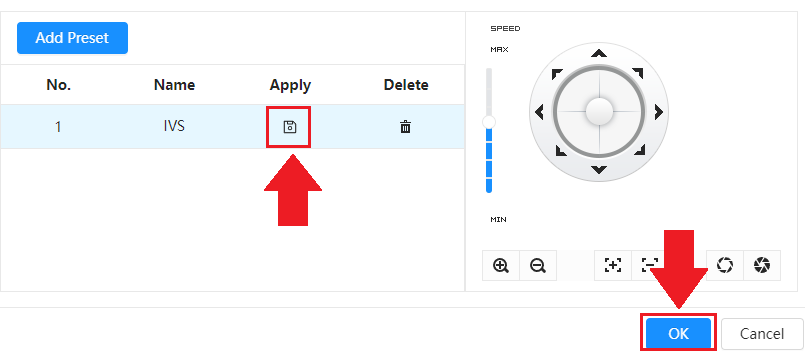

Step 3: Click Add Preset and set a preset for the rule if needed using the provided PTZ options. Double click the Name field and enter a name for the preset. Click Apply, then click OK

Screenshot 2023-10-11 091024.png

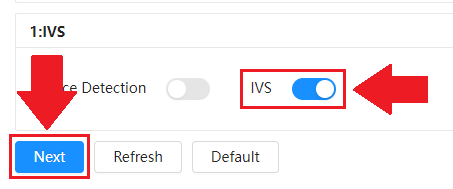

Step 4: Click +Preset and add the preset to the interface. Select the preset and click Next.

Screenshot 2023-10-11 091331.png

Step 5: Select the preset, click Add Rule, and select Missing Object. Adjust the duration if needed and draw a detection area in the area you would like to monitor and select any other applicable options. Click Apply.
