How To Setup An Abandoned Object Rule (IP4M-1068EW-AI)

The abandoned object rule allows the camera to trigger an event if an object is placed in a set area for a specified amount of time. This is useful to keep track of certain areas in which objects are not to be placed. For more information on how to setup an abandoned object rule, please refer to the information provided below.

Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.

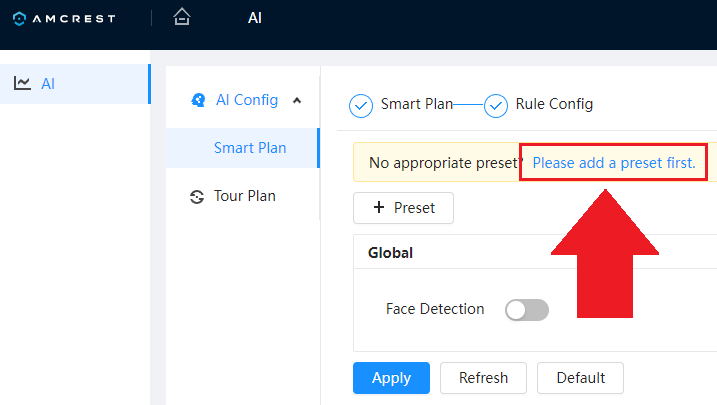

.Step 2: Access the AI menu and click Please add a preset first.

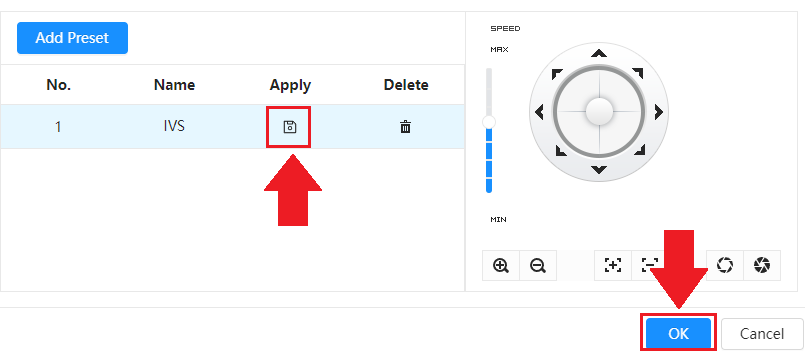

Step 3: Click Add Preset and set a preset for the rule if needed using the provided PTZ options. Double click the Name field and enter a name for the preset. Click Apply, then click OK.

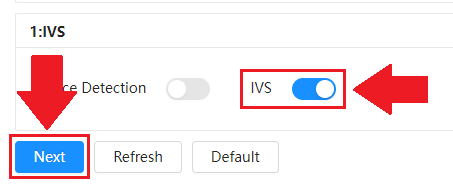

Step 4: Click +Preset and add the preset to the interface. Select the preset and click Next.

Step 5: Select the preset, click Add Rule, and select Abandoned Object. Draw a detection area on area you would like to monitor and select any other applicable options. Click Apply.
