How To Set An AI Rule (IP4M-1068EW-AI)

The AI menu allows the user to configure AI functions associated with your camera. This camera supports face detection and IVS. A face detection rule can be applied to a global preset or its own preset, however, IVS will need its own preset. For more information on how to set an AI rule, please refer to the information provided below.

Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.

Step 2: Access the AI menu can click Please add a preset first.

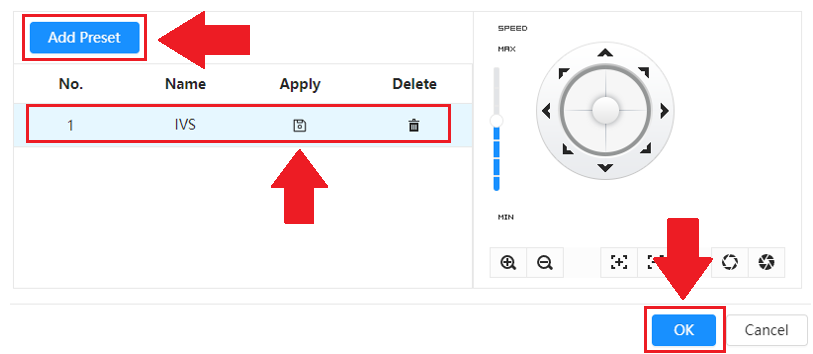

Step 3: Click Add Preset, name the preset and use the PTZ directional options to set the preset, click the save icon under Apply and click OK to set the preset.

Step 4: Click +Preset to add the preset into the Smart Plan menu and enable the rules. Click Next.

Note: To set additional presets click the settings icon  and select PTZ. Click Add Preset, name the preset, use the directional PTZ options (if needed), and click the save icon to apply the preset.

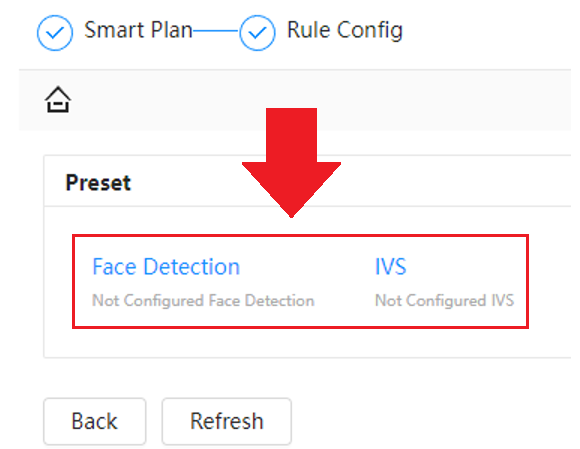

Step 5: Select the preset from the Rule Config menu to begin configuring that rule.
