SFTP stands for Secure File Transfer Protocol, it uses a secure shell encryption to provide a higher level of security when receiving files from the IP camera. Please make sure you have access to a properly configured SFTP server before proceeding. Please note, the SFTP protocol will use port 22 instead of port 21 to transfer files. License plate data can be sent to a SFTP/FTP and to a microSD card if needed. For more details on how to set your recordings to record to an SFTP server, please refer to the information provided below.
Step 1: Open the web user interface (Web UI) of your camera using a web browser. For more information on how to access the web UI, click here.

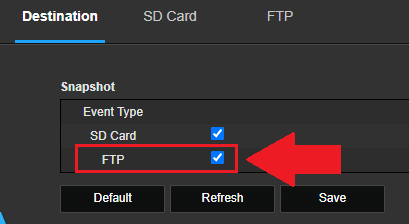

Step 2: Navigate to Setup>>Storage>>Destination and ensure the the FTP option is enabled. = Please note, if you would like LPR data to be sent to a microSD card as well, ensure the SD Card option is enabled as well. Click Save.

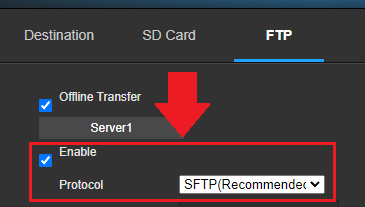

Step 3: Click on the FTP tab and ensure the SFTP (Recommended) option is enabled. If you would like data to be sent to a microSD card if the network disconnects or fails, enable the Offline Transfer option.

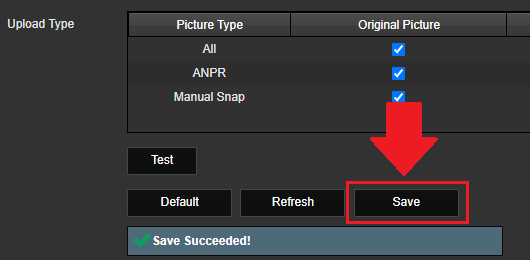

Step 4: Enter the server address, username, password, and remote directory folder into the appropriate field. In the Connection field, make sure the port number is set to 22. Select which types of snapshots, All, ANPR, Manual snapshots will be uploaded to the SFTP after triggered and click Save.

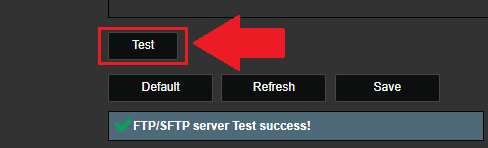

Step 5: Click on the Test button to test the connection status to the SFTP server.
