How To Use A Missing Object Rule On An Amcrest Camera (IP8M-2899EW-AI-V2)

The missing object rule allows the user to set a region around an object and if the object is moved or missing from the detection area an alarm will be triggered. This is useful to keep track of certain items an area that should not be removed. For more information on how to setup an abandoned object rule, please refer to the information provided below.

Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.

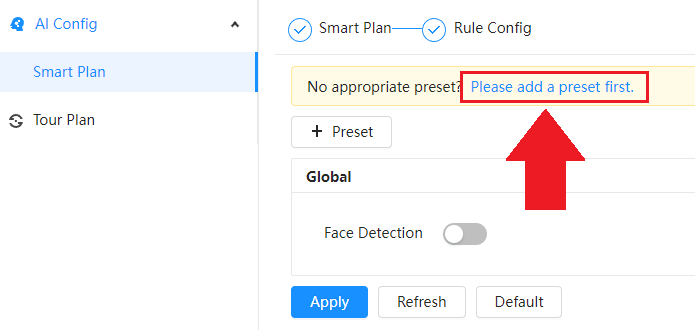

Step 2: Access the main menu and click on AI. Click "Please add a preset first".

Screenshot 2024-01-18 100847.png

Note: If a preset is already established, click +Preset to add an additional preset.

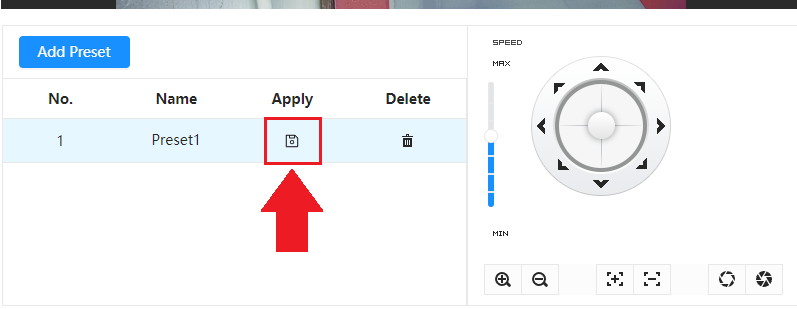

Step 4: Click Add Preset and use the PTZ directional arrows to set a PTZ preset if needed. Click the Apply icon to save the preset then click OK

Screenshot 2024-01-18 101044.png

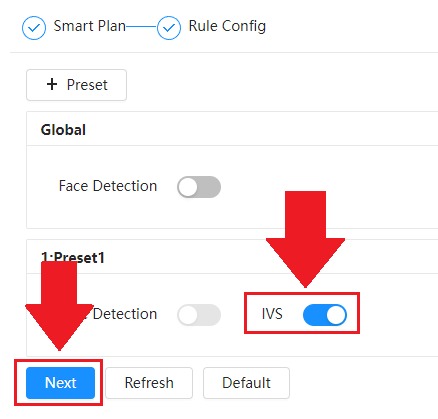

Step 5: Click +Preset and select the created preset. Select IVS, then click Next

Screenshot 2024-01-18 101715.png

Step 6: Click IVS.

Screenshot 2024-01-18 101902.png

Step 7: Click Add Rule and select Missing Object from the dropdown menu. Use your mouse to draw a detection area on the interface.

Screenshot 2024-01-18 102149.png

By default the rule will be set to trigger if an object is missing within the detection area for a duration of 10 seconds. However, you can adjust the duration if needed from 6 - 3600 seconds.

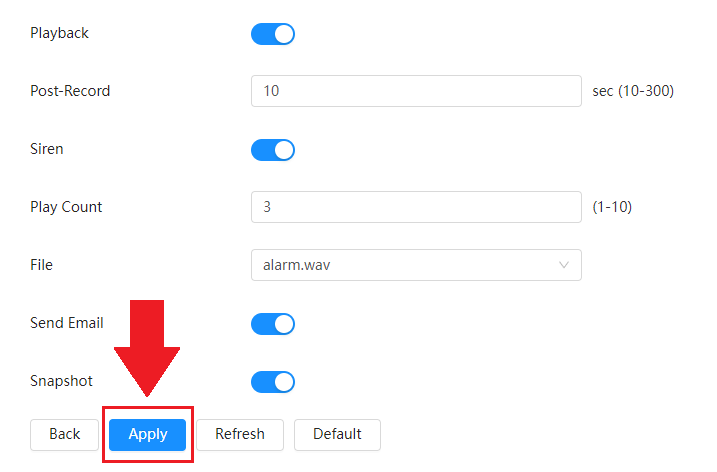

Step 8: Click Playback to retain events to a microSD card. This will allow you to view IVS events in the playback menu. Select any additional options, such as a siren, which will allow the camera to produce an audible siren, or email to send a notification of the event to an entered email address. For more information on how to setup email alerts, click here. Click Apply when finished.
