How To Use The Tripwire Rule On An Amcrest Camera (IP8M-2899EW-AI-V2)

Tripwire allows the camera to trigger an event if an object, such as a human or vehicle, crosses a set tripwire line. A preset must be established before adding a IVS rule. For more information on how to setup the rule please refer to the information provided below.

Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.

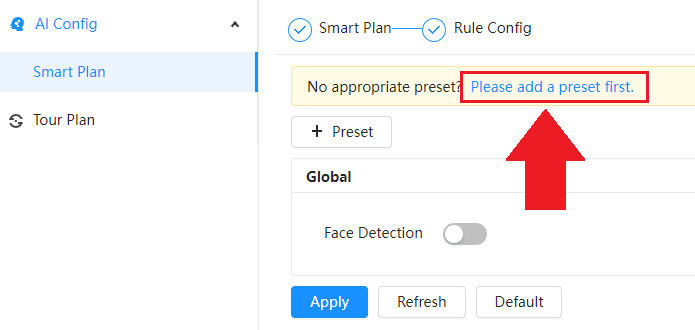

Step 2: Access the main menu and click on AI. Click "Please add a preset first".

Note: If a preset is already established, click +Preset to add an additional preset.

Step 4: Click Add Preset and use the PTZ directional arrows to set a PTZ preset if needed. Click the Apply icon to save the preset then click OK.

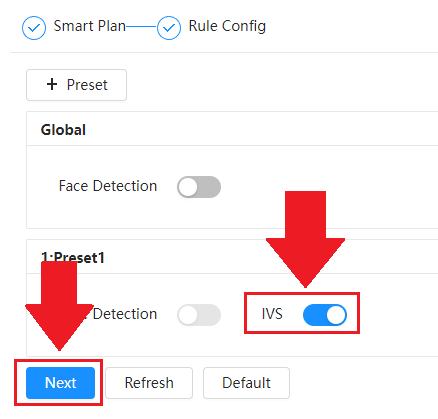

Step 5: Click +Preset and select the created preset. Select IVS, then click Next.

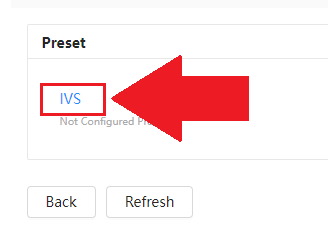

Step 6: Click IVS.

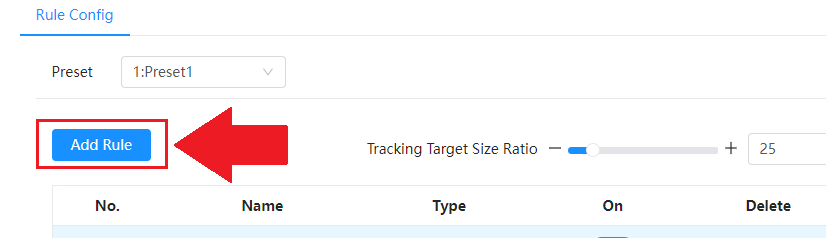

Step 7: Click Add Rule and select Tripwire from the dropdown menu. Use your mouse to draw a detection line on the interface. Please note, an option effective target filter can be set that will allow the rule only to trigger when a human or vehicle crosses the line.

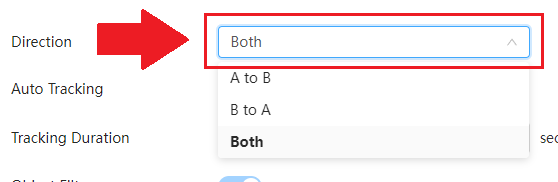

The detection line can be set to detect object from different directions, A to B (objects entering left to right), B to A (objects entering right to left), Both (objects entering from both directions.

Note: This camera also supports Auto Tracking. This will allow the camera to automatically track the object until it is no longer visible in the detection area.

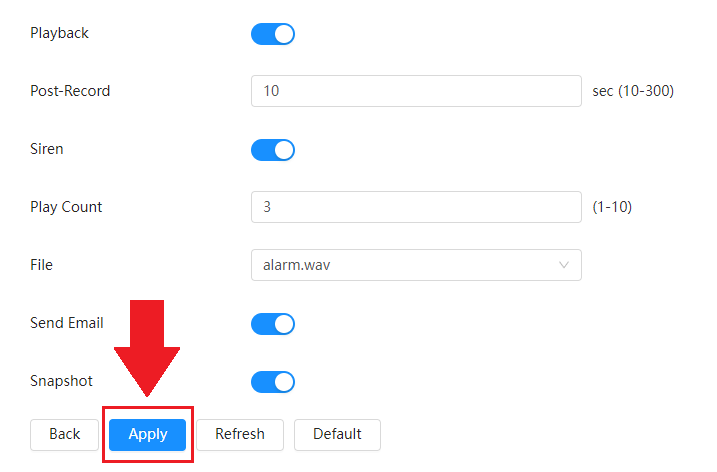

Step 8: Click Playback to retain events to a microSD card. This will allow you to view IVS events in the playback menu. Select any additional options, such as a siren, which will allow the camera to produce an audible siren, or email to send a notification of the event to an entered email address. For more information on how to setup email alerts, click here. Click Apply when finished.
