How To Use An Fast Moving Rule On An Amcrest Camera (IP4M-1063EW-AI_V2)

Fast Moving allows the camera to trigger an event if an object, such as a human or vehicle, quickly moves in an area set by the user. A preset must be established before adding a IVS rule. For more information on how to setup the rule please refer to the information provided below.

Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.



Step 2: Access the main menu and click on AI. Click "Please add a preset first".

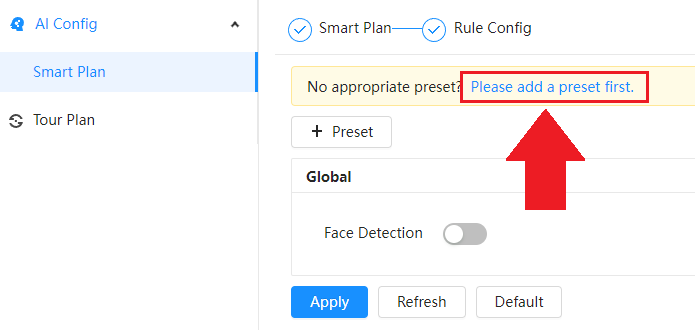

Screenshot 2024-01-18 100847.png

Note: If a preset is already established, click +Preset to add an additional preset.

Step 4: Click Add Preset and use the PTZ directional arrows to set a PTZ preset if needed. Click the Apply icon to save the preset then click OK

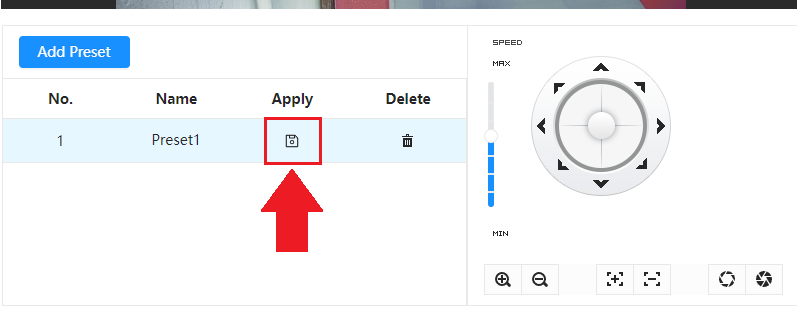

Screenshot 2024-01-18 101044.png

Step 5: Click +Preset and select the created preset. Select IVS, then click Next

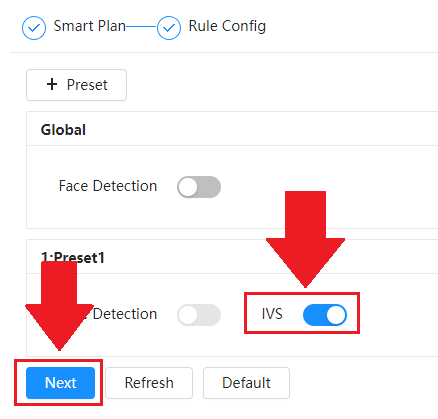

Screenshot 2024-01-18 101715.png

Step 6: Click IVS.

Screenshot 2024-01-18 101902.png

Step 7: Click Add Rule and select Parking Detection from the dropdown menu. Use your mouse to draw a detection area on the interface.

Screenshot 2024-01-18 102149.png

Use the sensitivity slider to adjust the speed threshold in which the rule will be triggered. This camera also supports Auto Tracking. This will allow the camera to automatically track the object until it is no longer visible in the detection area or for a duration of 15-300 seconds.

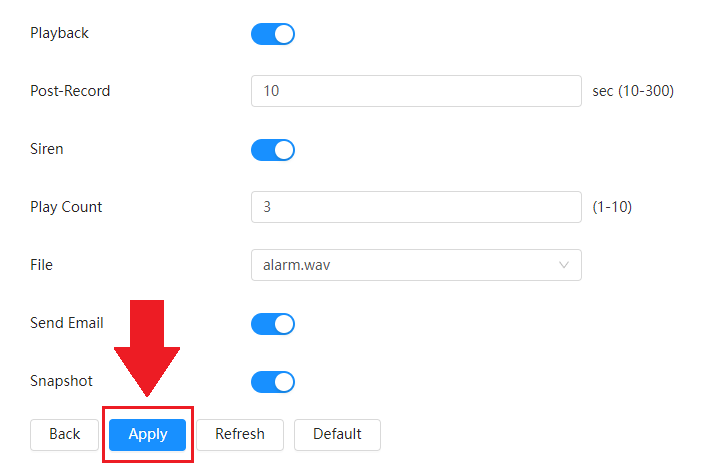

Step 8: Click Playback to retain events to a microSD card. This will allow you to view IVS events in the playback menu. Select any additional options, such as a siren, which will allow the camera to produce an audible siren, or email to send a notification of the event to an entered email address. For more information on how to setup email alerts, click here. Click Apply when finished.
