Tripwire allows the camera to trigger an event if an object, such as a human or vehicle, crosses a set tripwire line. After adding the rule, the interface will show the rule as enabled, use your mouse to draw a detection line on the interface. For more information on how to setup the rule please refer to the information provided below.
Step 1: Open a web user interface (Web UI) of your device and log in. For more information on how to access the web UI, click here.

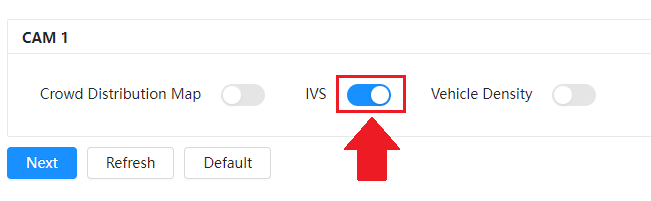

Step 2: Access the main menu and click on AI, select IVS, and click Next.
Step 3: Click Add Rule and select Tripwire from the dropdown menu. Use your mouse to draw a detection line on the interface. Please note, an option effective target filter can be set that will allow the rule only to trigger when a human or vehicle crosses the line.

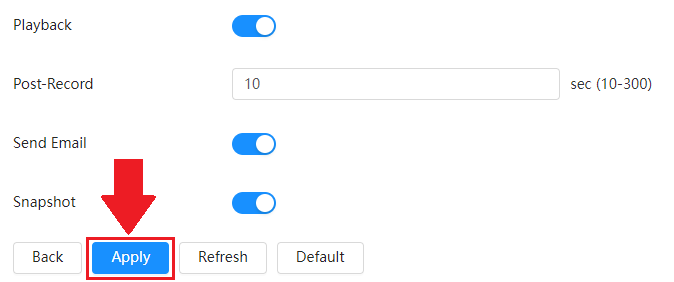

Step 4: Click Playback to retain events to a microSD card. This will allow you to view IVS events in the playback menu. Select any additional options, such as Send Email to send an notification of the event to an entered email address. For more information on how to setup email alerts, click here. Click Apply when finished.
