Physical Installation (IP5M-1190W)

Before physical installation of your camera please make sure the surface you are installing the camera on can support up to 3x the weight of the camera. Included with your device is a mounting bracket, two small security screws (to attach the camera to the bracket, four installation screws, 4 wall anchors, and installation screws. The following items may also be needed and are sold separately.

Note: The camera can support a microSD card of up to 256GB. For more information on how to install a microSD card into this camera, click here.

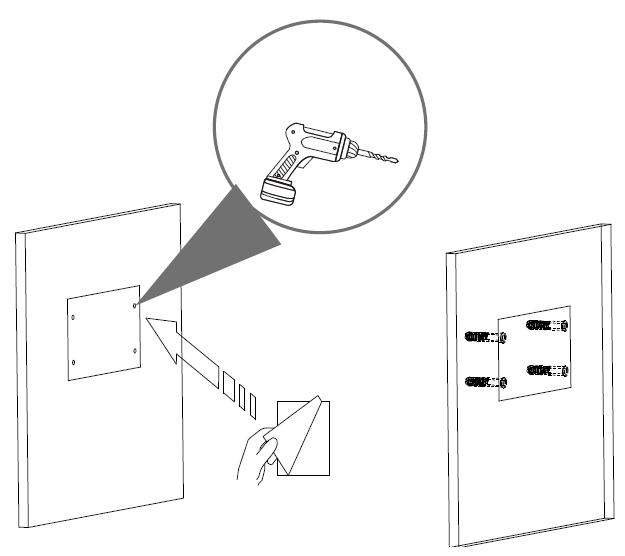

Step 1: Peel the sticker of the installation sticker off and place it onto the mounting surface. Use a drill to drill the installation holes and insert the included wall anchors into the holes.

Note: If you are installing on a wall, make sure the arrow on the installation sticker is pointing upwards. A 1" diameter hole can be drilled if running wiring through a wall. If you are installing it on a ceiling, make sure the arrow on the installation sticker is pointing downwards.

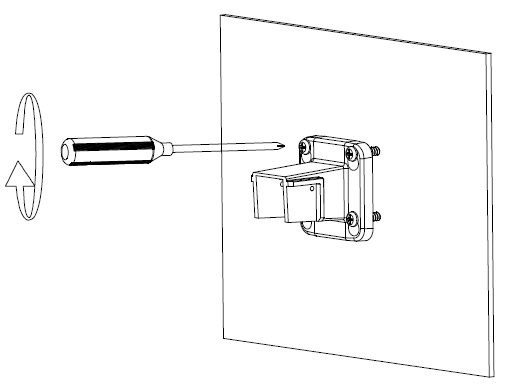

Step 2: Align the holes on the installation bracket with the wall anchors. Insert the installation screws into the holes and use a Phillips head screwdriver to secure the installation bracket to the mounting surface.

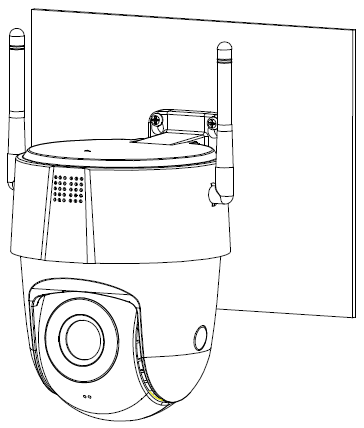

Step 3: Insert the camera into the bracket and align the security holes of the camera to the security holes on the installation bracket.

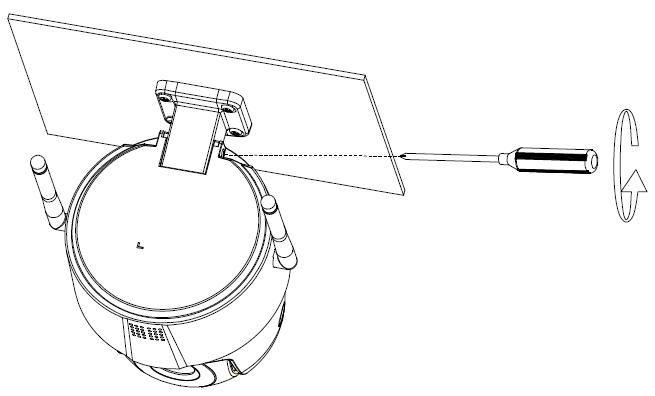

Step 4: Insert the included security screws into the security holes and use a Phillips head screwdriver to tighten these screws to secure the camera to the installation bracket.

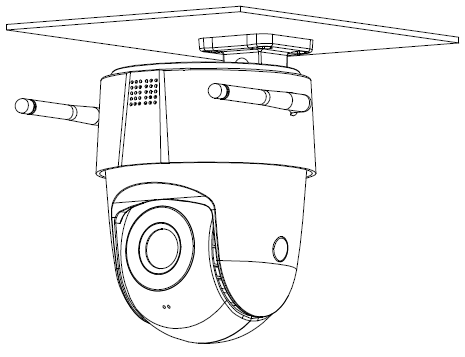

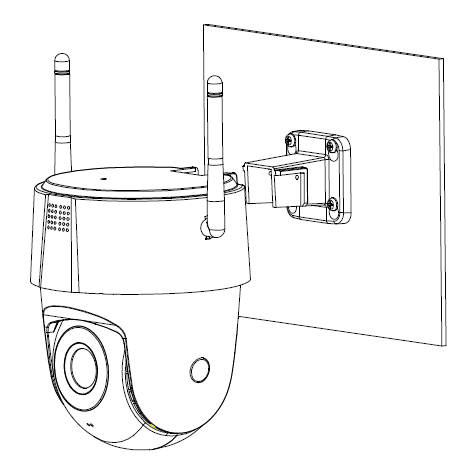

Note: If you are installing on a wall the Wi-FI antennas can be facing upwards, however, if you are installing on a surface such as a ceiling, the antennas can be facing forwards.
